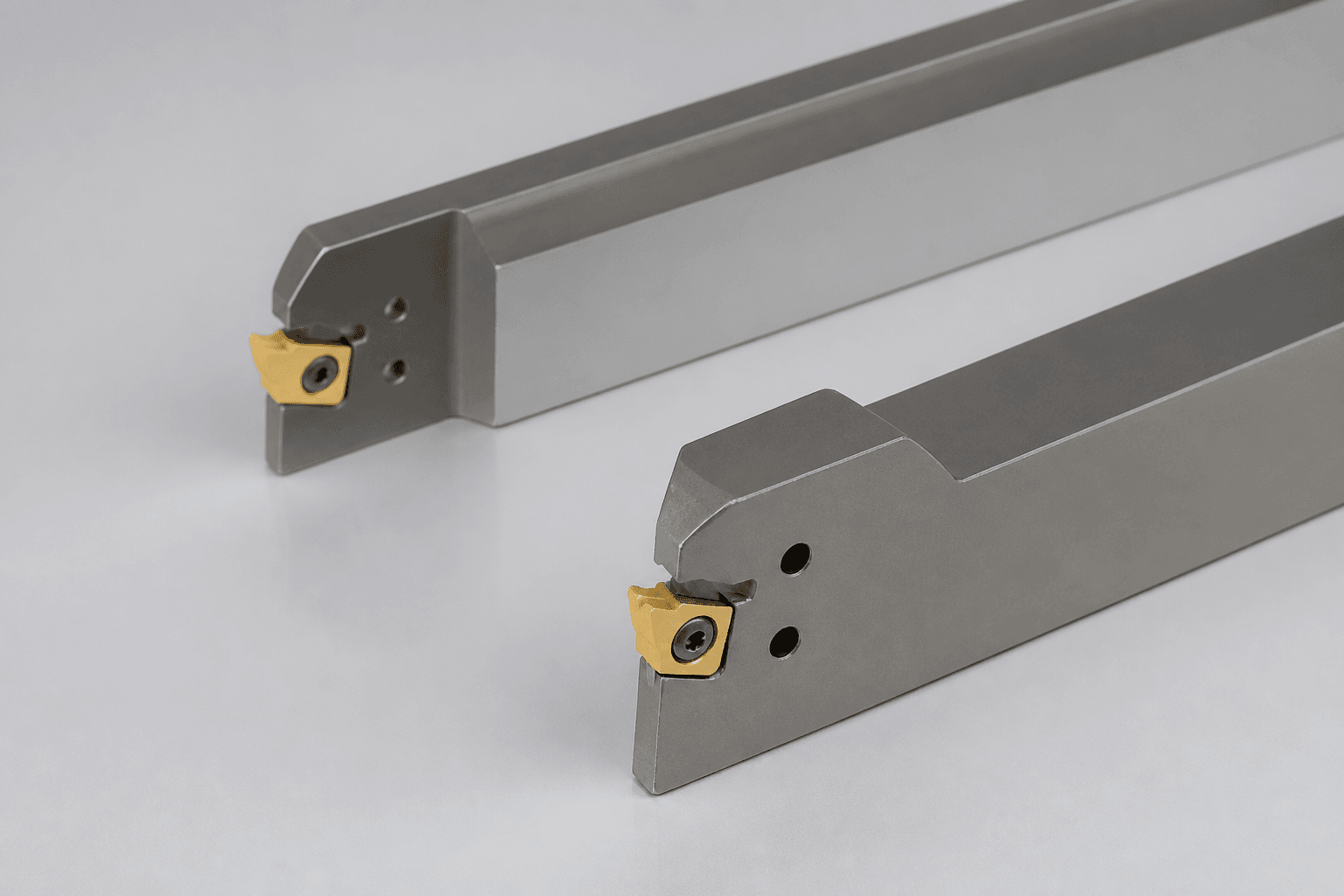

Parting Tools
Parting decides whether a bar job runs unattended. Blade rigidity, coolant pressure delivered at the edge, and an insert geometry that curls the chip inward are what make that possible.
- Steel
- Stainless steel
- Cast iron
- Non-ferrous
- Superalloys & titanium
Why this range
- Cut-off depth to 50 mm
- High-pressure coolant to 80 bar at the edge
- Left-hand, right-hand and neutral geometries
At a glance
- Series
- VC-PT
- Family
- Turning
- ISO coverage
- Steel
- Stainless steel
- Cast iron
- Non-ferrous
- Superalloys & titanium
- Recommended grades
- VC1015VC1025
Specifications
| Parameter | Value |
|---|---|
| Groove width | 1.0 – 6.0 mm |
| Depth of cut | up to 50 mm |
| Coolant supply | Over and under, 20 – 80 bar |
| Clamping system | Rigid blade and quick-change |
Applications
- Parting off
- Grooving
ISO material coverage
Application windows this family is specified into. Grade selection narrows within them.
- P
Steel
Unalloyed to high-alloy steel, cast steel
- M
Stainless steel
Austenitic, ferritic, duplex and super duplex
- K
Cast iron
Grey, nodular, malleable and compacted graphite iron
- N
Non-ferrous
Aluminium, copper alloys, brass, plastics
- S
Superalloys & titanium
Nickel and cobalt alloys, titanium, tungsten alloys
Recommended grades
Grades released for this family, with their position on the toughness and wear-resistance axis.
VC1015
PMPVD TiAlN
- Toughness
- 72
- Wear resistance
- 58
VC1025
PMSPVD AlTiN
- Toughness
- 64
- Wear resistance
- 70
