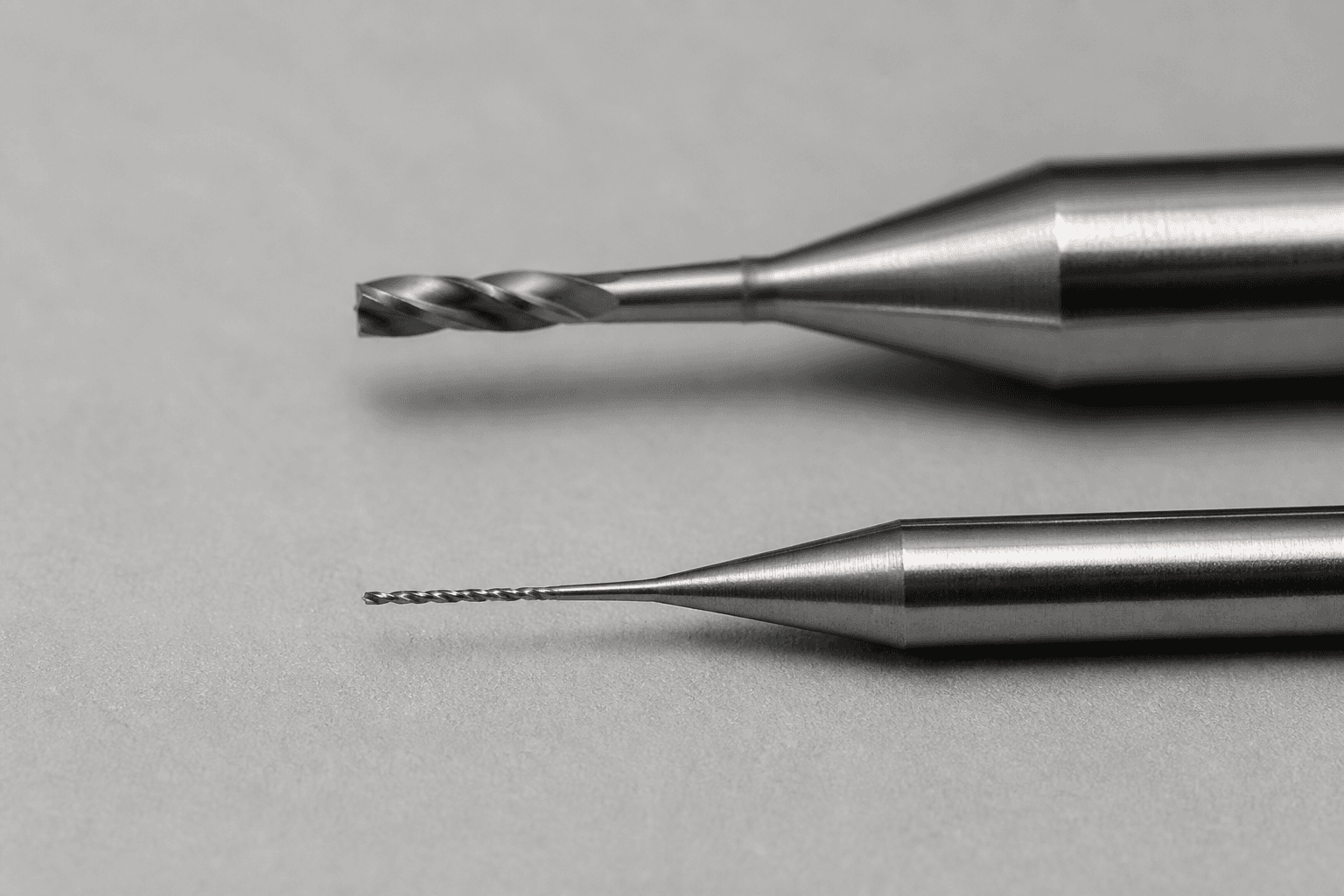

Micro Machining Tools
Below one millimetre, runout matters more than geometry. These tools are ground on the machine that measures them, and every batch ships with its measured cutting diameter recorded.
- Steel
- Stainless steel
- Cast iron
- Non-ferrous
- Superalloys & titanium
- Hardened materials
Why this range
- Ø0.1 – 3 mm on sub-micron substrate
- Measured diameter on every batch certificate
- Neck reliefs for deep cavity access
At a glance
- Series
- VC-MC
- Family
- Milling
- ISO coverage
- Steel
- Stainless steel
- Cast iron
- Non-ferrous
- Superalloys & titanium
- Hardened materials
- Recommended grades
- VC4005VC4020
Specifications
| Parameter | Value |
|---|---|
| Cutting diameter | 0.1 – 3.0 mm |
| Number of flutes | 2, 3, 4 |
| Runout | ≤ 2 µm at 3×D |
| Grain size | 0.2 µm ultra-fine |
| Shank diameter | 3, 4, 6 mm h5 |
Applications
- Micro milling
- Drilling
- Reaming
- Finishing
ISO material coverage
Application windows this family is specified into. Grade selection narrows within them.
- P
Steel
Unalloyed to high-alloy steel, cast steel
- M
Stainless steel
Austenitic, ferritic, duplex and super duplex
- K
Cast iron
Grey, nodular, malleable and compacted graphite iron
- N
Non-ferrous
Aluminium, copper alloys, brass, plastics
- S
Superalloys & titanium
Nickel and cobalt alloys, titanium, tungsten alloys
- H
Hardened materials
Hardened steel 45 – 65 HRC, chilled cast iron
Recommended grades
Grades released for this family, with their position on the toughness and wear-resistance axis.
VC4005
NSUncoated ultra-fine
- Toughness
- 80
- Wear resistance
- 44
VC4020
NDiamond DLC
- Toughness
- 60
- Wear resistance
- 92
