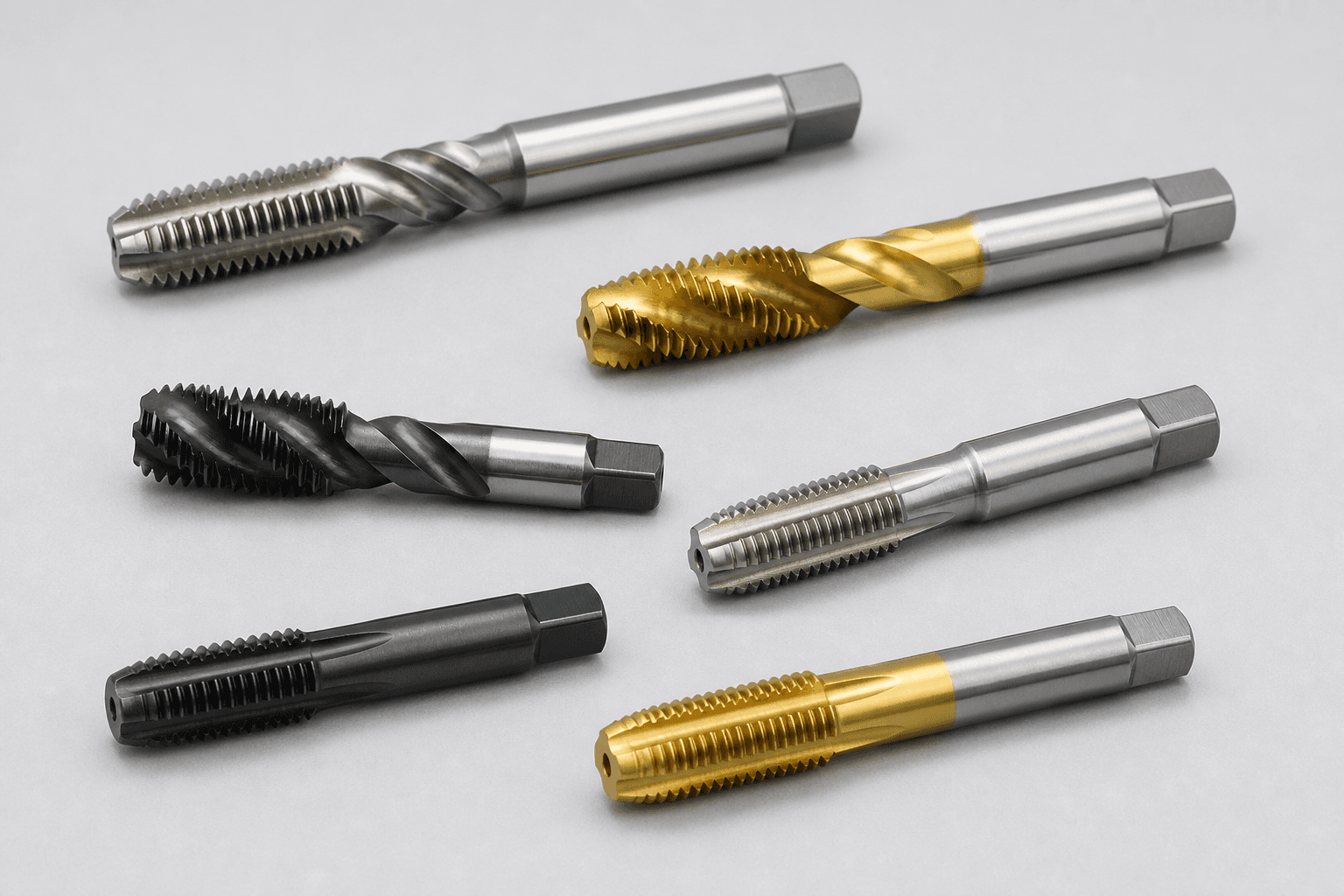

Taps
Spiral point for through holes, spiral flute for blind, and thread formers where the material allows — chipless and measurably stronger. Surface treatment is chosen by workpiece group rather than applied uniformly.
- Steel
- Stainless steel
- Cast iron
- Non-ferrous
- Superalloys & titanium
Why this range
- M2 – M30 plus UNC, UNF and G threads
- Cutting and cold-forming variants
- Tolerance classes 6H, 6HX and 6G
At a glance
- Series
- VC-TP
- Family
- Threading
- ISO coverage
- Steel
- Stainless steel
- Cast iron
- Non-ferrous
- Superalloys & titanium
- Recommended grades
- VC1015
Specifications
| Parameter | Value |
|---|---|
| Diameter range | M2 – M30, UNC/UNF #4 – 1" |
| Thread tolerance | 6H, 6HX, 6G |
| Substrate | HSS-E, HSS-E-PM, solid carbide |
| Coating | TiN, TiCN, TiAlN, steam tempered |
| Coolant supply | Internal on selected series |
Applications
- Tapping
ISO material coverage
Application windows this family is specified into. Grade selection narrows within them.
- P
Steel
Unalloyed to high-alloy steel, cast steel
- M
Stainless steel
Austenitic, ferritic, duplex and super duplex
- K
Cast iron
Grey, nodular, malleable and compacted graphite iron
- N
Non-ferrous
Aluminium, copper alloys, brass, plastics
- S
Superalloys & titanium
Nickel and cobalt alloys, titanium, tungsten alloys
Recommended grades
Grades released for this family, with their position on the toughness and wear-resistance axis.
VC1015
PMPVD TiAlN
- Toughness
- 72
- Wear resistance
- 58
